Routing in Networking - Routing Types, Protocols, and Benefits

Routing in networking is the process of determining the best path for data to travel from one device to another within or across networks. In a network, data is transmitted in the form of packets, and routing is responsible for directing these packets through multiple networks and routers, ensuring they reach their destination efficiently and accurately.

This article explains routing in computer networks, covering how routing works, its types, and routing protocols.  Additionally, enrolling in our networking course can help you master the practical concept of routing.

What is Routing?

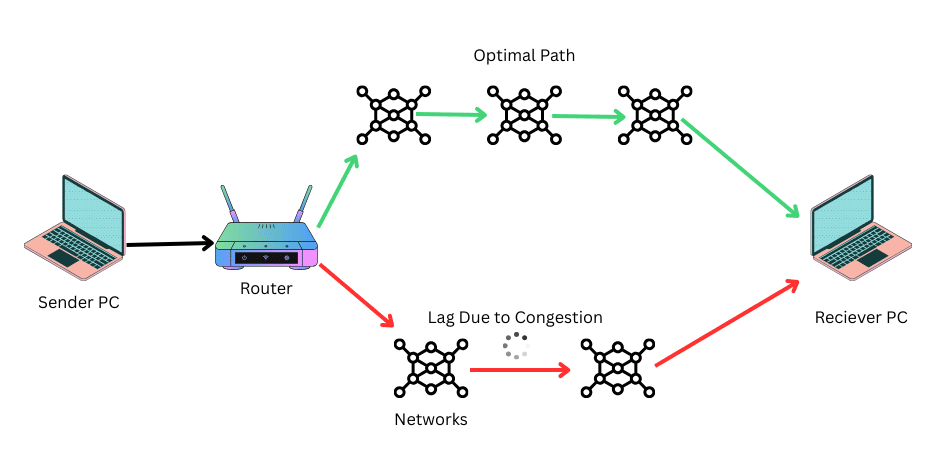

Routing is the process of selecting paths within a network over which data packets can travel from a source to a destination. It is a fundamental aspect of networking, ensuring that data packet reaches its intended destination through a complex web of intermediate devices and networks.

The devices involved in routing are generally routers. Routers work along with routing protocols to analyze and choose the best possible path for data. Better routing ensures optimal performance, reduced latency, and effective bandwidth utilization.

Online CCNA CourseBuild a career in networking with our CCNA training course.Explore course

Types of Routing

There are three types of routing: Static Routing, Dynamic Routing, and Default Routing.

1. Static Routing

Static routing involves manually configuring the routing table entries by a network administrator. The paths are fixed and do not change unless manually adjusted.

Static routing is simple and consumes fewer resources but lacks flexibility, as it cannot automatically adapt to network changes such as link failures or route congestion.

Advantages of Static Routing:

● No overhead from routing algorithms.

● Greater control over routes.

Disadvantages of Static Routing:

● Not scalable for large networks.

● Requires manual intervention for changes.

2. Dynamic Routing

Dynamic routing uses algorithms and routing protocols to automatically adjust routing paths based on the current state of the network. It can respond to network changes, such as traffic congestion or broken links, in real-time.

Common dynamic routing protocols include RIP (Routing Information Protocol), OSPF (Open Shortest Path First), and BGP (Border Gateway Protocol).

Advantages of Dynamic Routing:

● Automatically adapts to network topology changes.

● Scalable and reduces manual configuration efforts.

Disadvantages of Dynamic Routing:

● Increased overhead due to the use of routing algorithms.

● Potentially slower than static routing due to real-time decision-making.

3. Default Routing

Default routing is a method where a router is configured to send all packets destined for unknown networks to a default route. This is typically used in smaller networks where it is impractical to maintain a complete routing table.

Advantages of Default Routing:

● Simplifies the routing process.

● Reduces routing table size.

Disadvantages of Default Routing:

● Limited to smaller networks.

● Ineffective in large, complex networks.

How Does Routing Work?

Routing involves several steps and processes to ensure that data packets reach their intended destination.

Here's a step-by-step breakdown of how routing works:

Step 1. A data packet is created at the source, which includes information such as the destination IP address, source IP address, and other control data.

Step 2. Once a router receives the packet, the router reads the destination IP address and checks its routing table to decide where to forward the packet. The routing table contains a list of networks and their corresponding paths.

Step 3. Routers use routing protocols and metrics to determine the best path for the packet. If there are multiple routes available, the router will choose the most efficient one based on factors like distance, cost, and congestion.

Sep 4. Once the best route is selected, the router forwards the packet to the next router or the destination device. The process may be repeated several times as the packet hops from router to router until it reaches its destination.

Step 5. Upon reaching the final router in the path, the packet is delivered to the destination device on the local network.

This routing process ensures that data flows seamlessly across complex networks, even in cases of network failure or congestion.

Examples of Routing Protocols

Routing protocols are the sets of rules used by routers to communicate with each other and share information about the network's topology.

Different protocols serve different purposes, and each has unique characteristics suited to various network environments.

Routing Metrics

Routing metrics are the values used by routing protocols to determine the best path for data packets. Different routing protocols use different metrics, and some combine multiple metrics into a single composite value. Common routing metrics include:

1. Hop Count: The number of routers (hops) a packet passes through to reach its destination. Protocols like RIP use hop count as the primary metric, with fewer hops being preferred.

2. Bandwidth: The data transfer capacity of a link, often measured in bits per second (bps). OSPF uses bandwidth as a key metric to select faster links.

3. Delay: The time it takes for a packet to traverse a path. Lower delay is preferable, especially for time-sensitive applications like video conferencing.

4. Cost: A composite metric that may factor in various attributes like bandwidth, delay, and financial cost. OSPF uses cost as its main metric, allowing for more sophisticated path selection.

5. Load: Refers to the amount of traffic already present on a link. A high load may cause congestion, so lightly loaded paths are preferred.

6. Reliability: The stability and error rate of a network link. More reliable links are prioritized for critical data transmission.

What is a Router?

A router is a networking device that forwards data packets between different computer networks. Routers serve as intermediaries, determining the best route through which data should travel.

Routers analyze incoming data packets, determine their destination IP address, and then decide which network to forward them to based on internal routing tables and protocols.

Routers operate on Layer 3 (the Network Layer) of the OSI (Open Systems Interconnection) model and enable connectivity between networks, essentially facilitating communication between different subnets, regions, and even countries.

Modern routers also offer additional features such as firewall protection, VPN (Virtual Private Network) services, and Quality of Service (QoS) settings, making them an indispensable component in both residential and enterprise networks.

To start your career in networking, and get the best online training contact our learner advisors

Contact learner advisor

What is a Routing Table?

A routing table is a crucial data structure used by routers to store information about network paths. It contains entries that map destination IP addresses to their corresponding next-hop addresses and metrics, such as cost or distance.

When a router receives a data packet, it consults the routing table to determine the most efficient path for forwarding the packet to its destination, ensuring optimal network performance and connectivity.

Advantages of Routing

1. Efficient Data Transmission: Routing ensures that data travels via the most efficient path, reducing latency and congestion.

2. Scalability: Dynamic routing protocols allow networks to grow without requiring extensive manual configuration.

3. Network Redundancy: Routers can automatically reroute traffic in case of a link failure, ensuring high availability.

4. Load Balancing: Some routing protocols support load balancing, distributing traffic evenly across multiple paths to avoid bottlenecks.

5. Security: Routers often come with security features such as firewalls and VPNs, providing additional protection for network traffic.

Disadvantages of Routing

1. Complexity: Dynamic routing protocols can be complex to configure and maintain, especially in large networks.

2. Resource Consumption: Routers consume processing power and bandwidth to maintain and update routing tables, which can impact performance.

3. Latency in Path Selection: In dynamic routing, the process of recalculating routes can introduce latency, especially in real-time applications.

4. Vulnerability to Attacks: Routers can be vulnerable to cyberattacks, such as routing table poisoning, which can lead to network outages or data interception.

Conclusion

Routing is a critical process that enables the smooth operation of modern networks. From the simple static routes in small networks to the complex dynamic routing used on the internet, routing ensures that data travels efficiently and securely from one point to another.

While it comes with some challenges, such as complexity and vulnerability, the benefits of efficient routing, such as scalability, load balancing, and redundancy, far outweigh its drawbacks.

In a world where data exchange is increasingly critical, understanding routing and the various protocols that govern it is essential for network administrators, engineers, and anyone involved in IT infrastructure management.
